The Half house by SU Architects

The Half house by SU Architects

Architects: SU Architects
Location: Deqing, Huzhou, China
Year: 2015
Photo courtesy: Hao Chen, Xuguo Tang
Description:

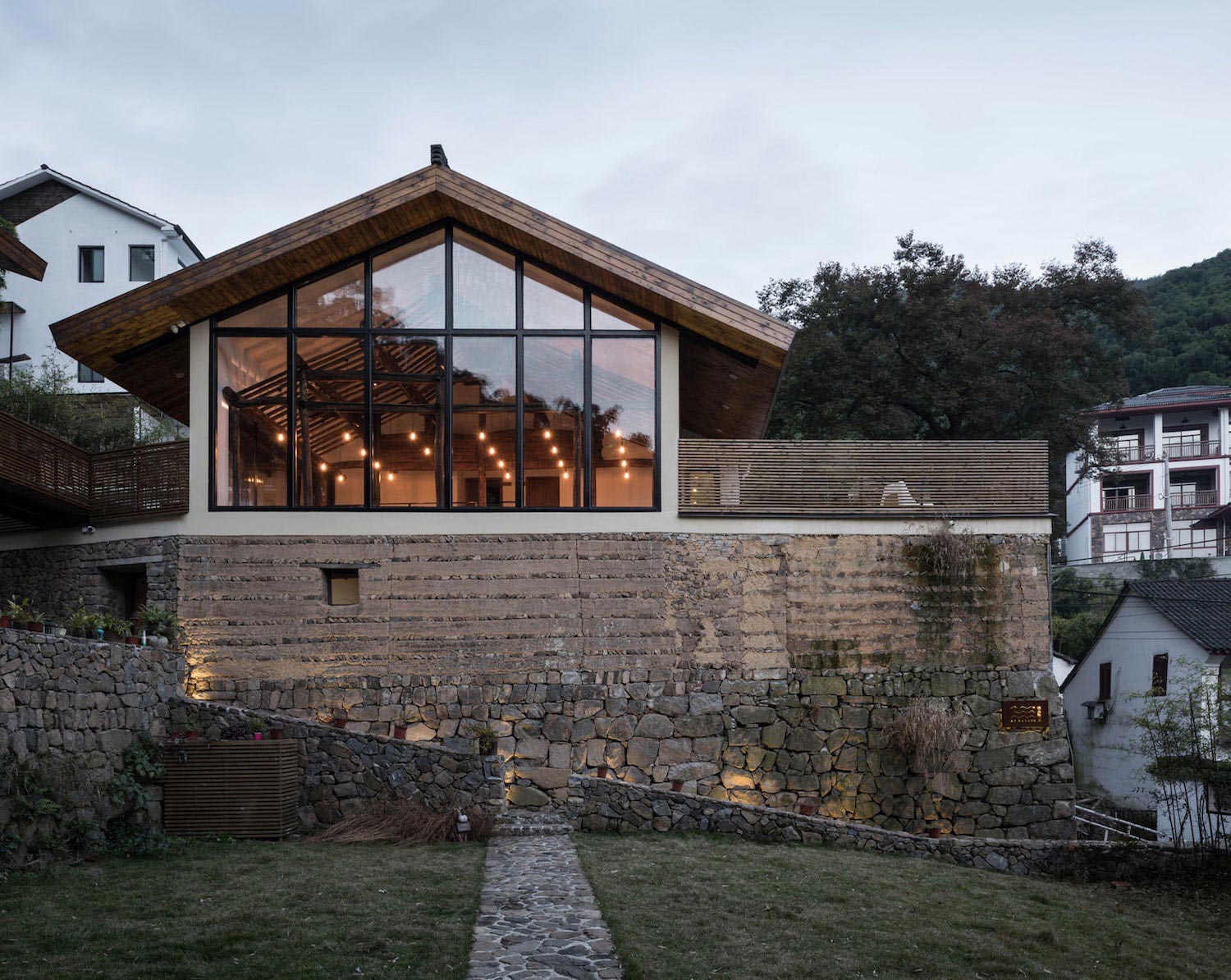

“The site is located in Moganshan, a beautiful mountain with the well-keeping natural ecology, in Zhejiang Province. Originally, the existing building construction in the site is a hundred years old house, the main structure is the rammed earth wall with column-and-tie wooden structure. The design strategy intends to furthest retain the original rammed earth walls and wooden structure, and companied with the new construction of the brick-concrete structure. Finally the new part and the preserved part became a formation of a mutual entanglement, a relationship of be within each other. The architecture itself is no longer just a country house, but altered into a local museum, a time shuttle. The walls are no longer encirclement, the wood is no longer the structure, but the storyteller under the spotlight. All these formations would lead the experimenter to get a dramatic sense of ritual in these daily small-scale spaces.

Since the site is located in the mountain area of Zhejiang, and the existing building construction on site is a century-old two-story country house, with the rammed earth wall with column-and-tie wooden structure, which was the traditional typical residential building system in local western area of Zhejiang. As a result of years of disrepair, the internal wooden structure had local collapsed, the external rammed earth wall had stripped into its real color from the original white lime paint, two-storied rammed earth wall tilted seriously, with a danger risk of total collapse.

Originally, the client wanted to demolished the whole existing house and build a brand new concrete house. But considering the house as one of the few old houses in this village, mottled rammed earth walls and blacked structural woods despite look vulgar, but it is the window of the past to recall the treasure images of this house even the whole village, it is the truly value of the existing construction. After persuading the client to preserve the rammed earth walls and wooden structures, the tasks of design turned into a proposition essay: how to found the balance of modern living comfort and traditional context continuity in a small scale old house?

Demolition vs. preservation: after our investigation and mapping on the site, we decided to remove the decaying outereave columns and the outwardly sloping part on the second story of the west side wall. Preserved the main body of the wooden structure that in well-condition and almost all of rammed earth walls.

Addition & creation: the new addition part of the building is using concrete frame structure, the roof with steel roof truss bear the load independently. Digging the space for foundation beam underneath the side of rammed earth wall, and build a 240mm new brick wall inside of the wall, as a new building envelope and structural load bearing system. This strategy released the existing rammed earth walls and wooden structures out from the building load-bearing system.

After the demolition of the upper rammed earth wall with yellow mud repair leveling, as the bottom layer of the template, then constructed cast-in-place concrete cross-over beam above the template to support the load of upper building construction.

In order to prevent the total collapse of existing inward tilted rammed earth wall, the new constructed roof extended out to cover the wall avoiding rain erosion, also by increasing the horizontal steel support system on the inside of the wall to ensure that no inward collapse happen.

Grown from the earth: the existing rammed earth walls and wooden structures are well preserved, and fully presented at interior space. Soil and wood, these two materials express a warm rustic taste that filled within the space. The new added part should be as leaving blank, so that let the original colors of the soil and wood warm and shower in the entire space.

Chiseling wall for the light: since the dim light of in the old house, when chiseled down the rammed earth walls on the second story, also open the upper part of west side wall to bring the light into the interior space. In order to illumine the whole interior area in this old house, and the high windows can still cut off the sight viewing, to avoid that taking everything both inside and outside in only one glance.

Double layered wall form a ritual: between the rammed earth walls and the bedroom, using a glass wall to separate them, then lighten the rammed walls. On the one hand to increase the interior lighting, on the other hand, to create the rammed earth wall as standing in the spotlight, that form expression of sense of stage. The separation forced the experiencer backward to keep a distance to the rammed earth wall, when they taking a sight of the wall as taking a sight on a piece of art, a ritual sense rising from the deep heart. This piece of art in bedroom altered the daily sleeping into a type of memorial and expectation.

Facing a wall, and thinking over: normally, large-scale space is given a commemorative sense, small-scale space is given a daily using purpose. When people are in an introverted little space, viewing is easily concentrated at a point or a surface, it will produce a strong focus, triggering time and space interspersed, the object or the space itself would be redefined. So this kind of concentration focusing is given a sense of monumental and memorial to a small scale space, just as an old Chinese saying, that facing a wall, and thinking over, thinking of the future in the past.
